Joisted
This section provides solutions for installing underfloor heating in joisted or panel-based floor structures. It’s one of the more complex areas of underfloor heating, and getting it right makes all the difference.
What kind of joists are in place—solid timber or posi-joists? Has the chipboard already been glued down? Will the system need to be installed from beneath? Can the joists be notched? What is the allowed build-up height?
Just like our retrofit solutions, we offer a variety of joisted systems to suit your specific needs. Because of the many variables, there’s no universal solution—every project requires careful planning to achieve the best results.
Why choose it:
- No wet trades – ideal for upstairs or time-sensitive projects.
- Lightweight – minimal impact on structure.
- Serviceable – easier future access than buried systems.
Typical specs
- Pipe: 12–16 mm
- Centres: 150–200 mm
- Build-up: from 18 mm panel thickness (system dependent)
- Floor finishes: boards, engineered wood, LVT, carpet (with suitable underlay)
When Joisted is the right call
- Suspended timber floors where screed isn’t viable.
- You want faster response than in-screed on upper floors.
- You need controllable zones per room.
Fit From Above Plate

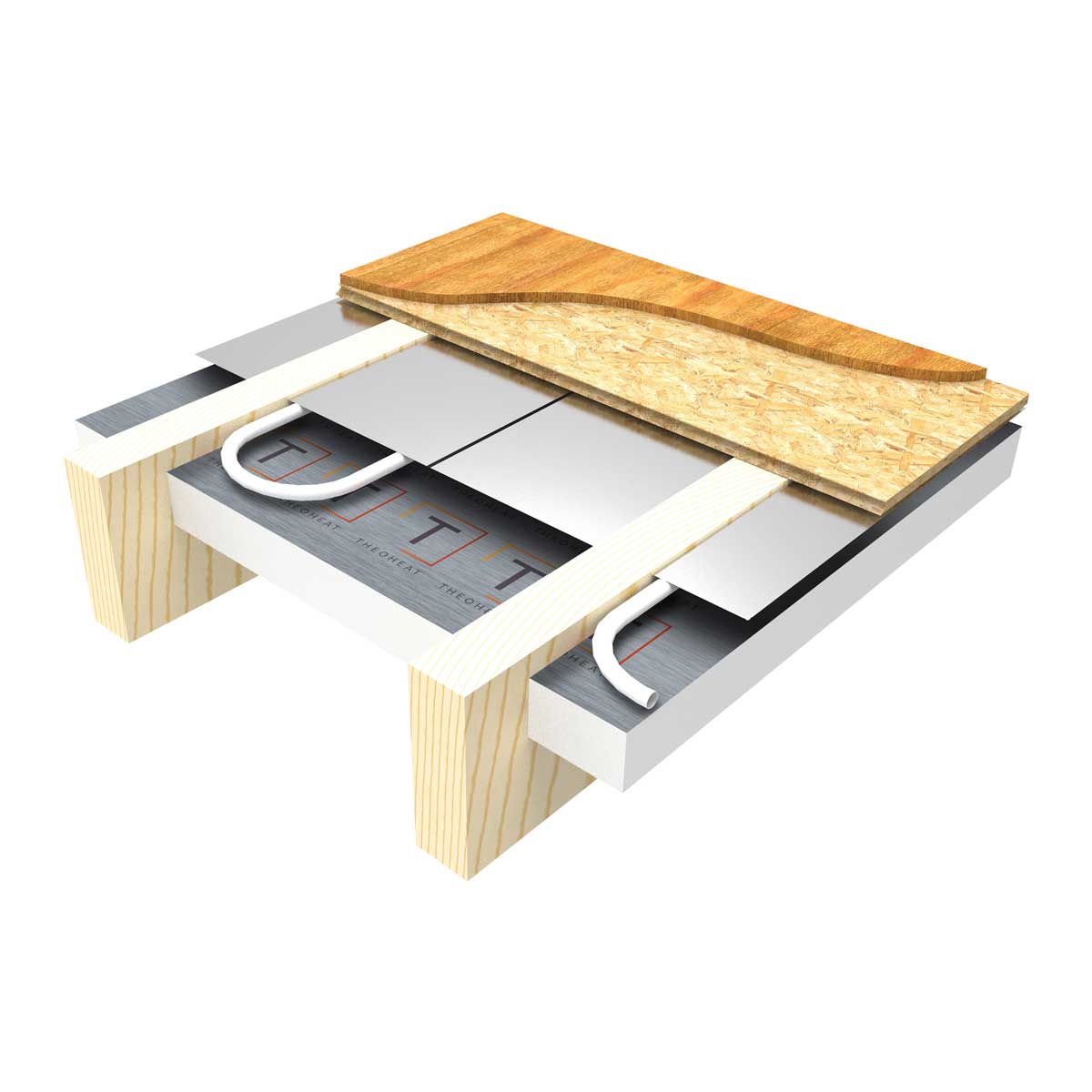

Fit From Below Plate
Dry Mix Over Board

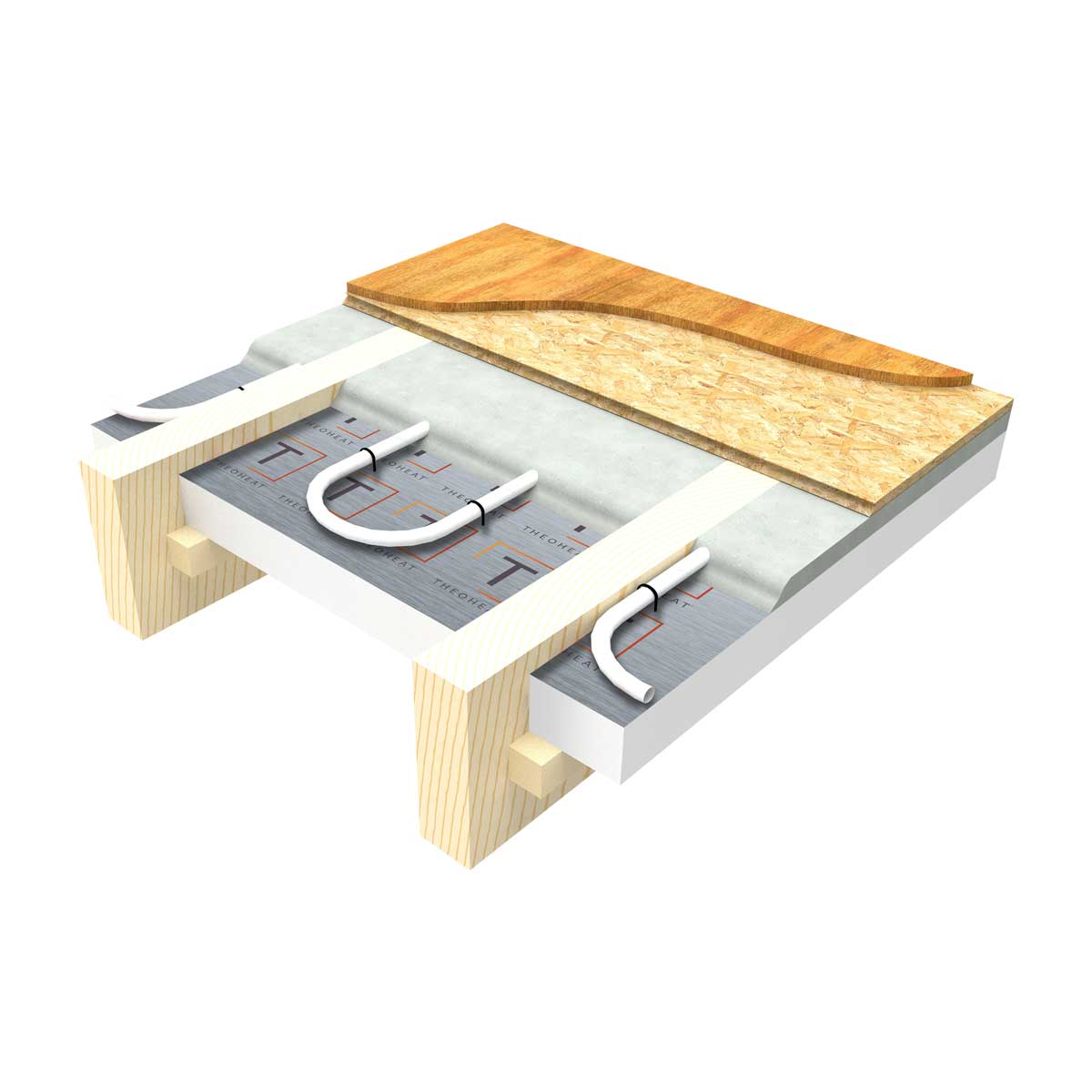

Dry Mix Between Joist
In Board
Overlay Over Board
Joist Over Solid With Plate
Joist Over Solid With Dry Mix
